Number System

Binary Number System

这一节的内容可以用这个例子来总结
To express $(1001.1101)_{2}$ in decimal number,

1	0	0	1	.	1	1	0	1
$1 \times 2^{3} = 8$	$0 \times 2^{2} = 0$	$0 \times 2^{1} = 0$	$1 \times 2^{0} = 1$		$1 \times 2^{- 1} = 0.5$	$1 \times 2^{- 2} = 0.25$	$0 \times 2^{- 3} = 0$	$1 \times 2^{- 4} = 0.0625$

Sum them up to get the decimal number of $(1001.1101)_{2} = 8 + 1 + 0.5 + 0.25 + 0.0625 = 9.8125$

Octal and Hexadecimal Numbers

换算为十进制跟上面二进制换算一样，在此不述

Least significant figure (LSD)
Most significant figure (MSD)

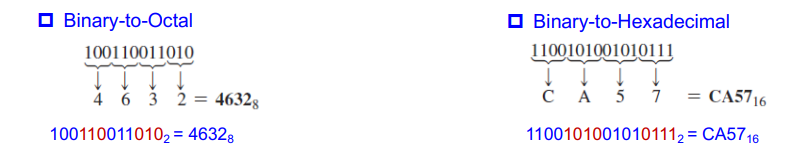

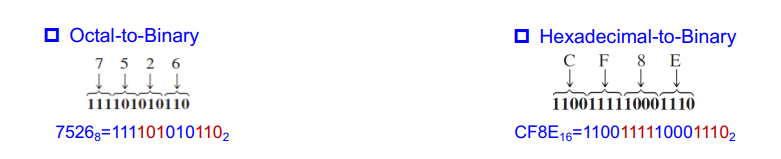

Conversion between Binary, Octal and Hexadecimal Numbers

规则为

3 个二进制为 1 个八进制
4 个二进制为 1 个十六进制

Bytes and Nibbles

Unit	No. of Bits	Represent values per unit	Range
Byte	8	$2^{8} = 256$	$[0, 255]$
Nibble	4	$2^{4} = 16$	$[0, 15]$

Number Digit	No. of bit	No. of byte	No. of nibble
Binary Digit	1	$\frac{1}{8}$	$\frac{1}{4}$
Octal Digit	3	$\frac{3}{8}$	$\frac{3}{4}$
Hex	4	$\frac{1}{2}$	1

Signed Numbers

Sign / Magnitude Numbers

Positive number: sign bit = 0
Negative number: sign bit = 1
Range: $[- (2^{N - 1} - 1), 2^{N - 1} - 1]$
Example
+6 = 0110
-6 = 1110

Two's Complement Numbers

Positive number: sign bit = 0
Negative number: sign bit = 1
Range: $[- 2^{N - 1}, 2^{N - 1} - 1]$
Step:

Convert to one's complement: 0 和 1 互换
Add 1

Example: Calculate two's complement of $- 3$

Binary number of 3: $0011$
One's complement: $1100$
Add 1: $1101$
Hence, the two's complement of $- 3$ is 1101

Tip

只有当 sign bit 一致的情况下才有可能会出现 overflow error

Subtraction: 转换为加法，如 $5 - 3 \Rightarrow 5 + (- 3)$
Multiplication: 按一般乘法做
Division: 不断做 subtraction

Example

Divide $01100100$ by $00011001$

Convert $00011001$ to 2's complement (negation 变成负数)
$00011001 \to 11100111$
不断做 subtraction
$01100100 + 11100111 = 01001011$
$01001011 + 11100111 = 00110010$
$00110010 + 11100111 = 00011001$
$00011001 + 11100111 = 00000000$
Quotient = $4 = (0100)_{2}$

Fixed-Point Number

定点数 fixed-point number 就是固定小数点的位置

Unsigned Fixed Point Formats

$U a . b$

$a$ is integer bit
$b$ is fraction bit

Example

Convert 6.75 into binary

\begin{aligned} 6 & = (110)_{2} \\ 0.75 & = (0.11)_{2} \end{aligned}

Represent 6.75 in different format:

$U 4.4 = \underset{6}{\underset{⏟}{0110}} \underset{0.75}{\underset{⏟}{1100}}$
$U 3.5 = \underset{6}{\underset{⏟}{110}} \underset{0.75}{\underset{⏟}{11000}}$
$U 6.2 = \underset{6}{\underset{⏟}{000110}} \underset{0.75}{\underset{⏟}{11}}$

Signed Fixed Point Format

$Q a . b$ : signed 2's complement number

$a$ is integer bit, including the sign bit
$b$ is fraction bit
Convert the unsigned fixed point format to 2's complement

Example

Write -6.75 in Q4.4

$6.75 = (01101100)_{2}$
1's complement: $10010011$
Add 1 LSB: $10010100$

Saturating Arithmetic

定点溢出 Fixed point overflow 通常很糟糕，会产生难看的伪影（artifacts）：

视频里明亮区域中间出现暗像素
音频里出现咔哒声
Saturating Arithmetic: Use largest value when overflow

Example

In U4.4, $11000000 + 01111000 = 100111000$
Overflow error occurs
Hence, use the largest value of U4.4 under saturating arithmetic, i.e. $11000000 + 01111000 = 11111111$

Floating Point Numbers

类似科学计数法 (General form: $\pm M \times B^{E}$ )

$M$ = 尾数 mantissa
$B$ = Base
$E$ = Exponent
We use IEEE 754 floating-point standard
1 bit for sign
8 bit for biased exponent
23 bit for fraction

Biased Exponent

Range of exponent (without biased): $[0, 2^{8} - 1] = [0, 255]$
只能表示正数和 0，表示不了负数
但是科学计数法里的指数是有正有负，因此把 exponent 全部加 127，变成 positive number 储存

\begin{aligned} 存进格子的值 & = 真实指数 + 偏移量(bias) \\ 取出时：真实指数 & = 格子里的值 - 偏移量 \end{aligned}

Example

Represent 228 using 32 bit floating point representation

Convert to binary number: $228 = (11100100)_{2}$
Normalize (把小数点移到第二位): $11100100 = 1.1100100 \times 2^{7}$

移动几位，指数就是几。这里移了 7 位 → 指数 $E = 7$

计算 sign bit, exponent and mantissa
Sign bit: 0
Exponent: $7 + 127 = 134 = (10000110)_{2}$
Mantissa / Fraction: 由于第一位（即小数点前的那位）永远为 1，所以可以省略来减省空间
1. 保存为 $1100100$
2. 由于 fraction bit 是 23-bit 长，因此要填充 $0$ ，因此为 $110 0100 0000 0000 0000 0000$

因此， $228 = 0 10000110 11001000000000000000000$

Example

Write -58.25 in floating point

Convert to binary number: $58.25 = (111010.01)_{2}$
Normalize: $1.1101001 \times 2^{5}$
Fill the fields
Sign bit: 1
Exponent bit: $5 + 127 = 132 = (10000100)_{2}$
Fraction bit: $110 1001 0000 0000 0000 0000$

Special Cases

Number	Sign	Exponent	Fraction
0	X	00000000	全 0
$+ \infty$	0	11111111	全 0
$- \infty$	1	11111111	全 0
NaN（Not a Number）	X	11111111	非 0

Non-positional / Non-weighted Number System

并非所有二进制串都是用来做算术的"数"，有些只是编码（code）

位置/加权计数系统（positional/weighted number system）： 符号的值由它的位置决定
- e.g. 十进制、二进制、八进制、十六进制
非位置/非加权系统（non-positional/non-weighted）： 符号的值与位置无关
- e.g. 格雷码（Gray Code）、循环码（cyclic code）

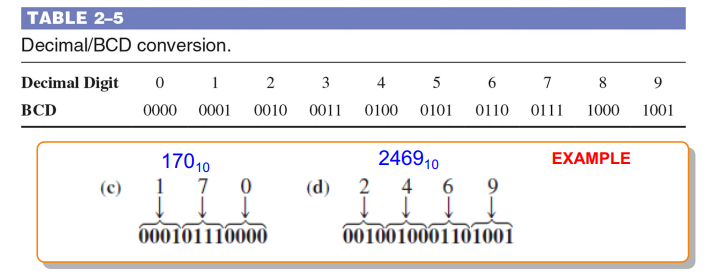

Binary Coded Decimal (BCD)

把每一个十进制数字单独用一个 4 位二进制编码表示
例如 8421 code

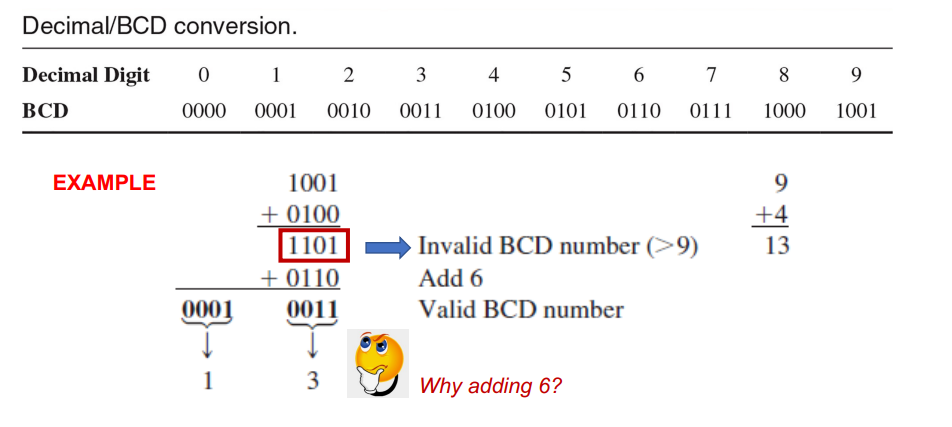

BCD Addition

Add two BCD numbers （跟二进制加法一致）

If a 4-bit sum $\leq$ 9, it is valid BCD number
Else, add 6 $(0110)_{2}$ to 4-bit sum

Note

4 bit 二进制的 range 是 $[0, 15]$ ，但 BCD 的 range 是 $[0, 9]$ （到 1001 = 9 就该进位了）
加 6 正好把这段落差补回来，让进位时序重新和十进制对齐

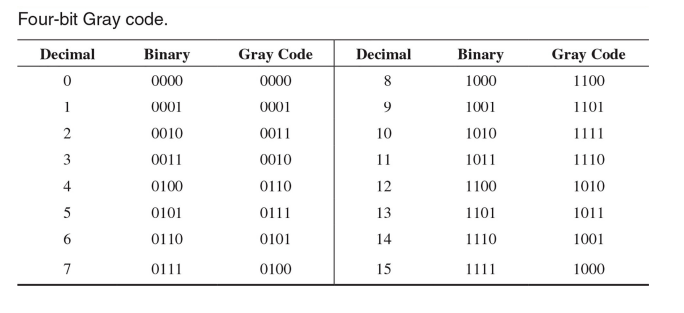

Gray Code

Only a single bit change from one code word to the next in sequence
相邻的 Gray Code 只有 1 bit 的变化

Denote each digit of Gray Code by $G_{i}$ and digit of binary number by $B_{i}$

Convert from binary number to Gray Code
1. Copy MSB (最左边的数字, i.e. $G_{1} = B_{1}$ )
2. XOR: $G_{i} = B_{i} \oplus B_{i - 1}$

Example

Convert the binary number $1100 0110$ to Gray Code

$G_{1} = B_{1} = 1$
Carry out XOR operation

\begin{aligned} G_{2} & = B_{2} \oplus B_{1} = 1 \oplus 1 = 0 \\ G_{3} & = B_{3} \oplus B_{2} = 0 \oplus 1 = 1 \\ G_{4} & = B_{4} \oplus B_{3} = 0 \oplus 0 = 0 \\ G_{5} & = B_{5} \oplus B_{4} = 0 \oplus 0 = 0 \\ G_{6} & = B_{6} \oplus B_{5} = 1 \oplus 0 = 1 \\ G_{7} & = B_{7} \oplus B_{6} = 1 \oplus 1 = 0 \\ G_{8} & = B_{8} \oplus B_{7} = 0 \oplus 1 = 1 \end{aligned}

Hence, the Gray Code is $10100101$ .

Convert from Gray Code to binary number
- Copy MSB (i.e. $B_{1} = G_{1}$ )
- XOR: $B_{i} = B_{i - 1} \oplus G_{i}$

Example

Convert Gray Code $10101111$ to binary number.

\begin{aligned} B_{1} & = G_{1} = 1 \\ B_{2} & = B_{1} \oplus G_{2} = 1 \oplus 0 = 1 \\ B_{3} & = B_{2} \oplus G_{3} = 1 \oplus 1 = 0 \\ B_{4} & = B_{3} \oplus G_{4} = 0 \oplus 0 = 0 \\ B_{5} & = B_{4} \oplus G_{5} = 0 \oplus 1 = 1 \\ B_{6} & = B_{5} \oplus G_{6} = 1 \oplus 1 = 0 \\ B_{7} & = B_{6} \oplus G_{7} = 0 \oplus 1 = 1 \\ B_{8} & = B_{7} \oplus G_{8} = 1 \oplus 1 = 0 \end{aligned}

Hence, the binary number is $11001010$ .

Error Codes

数据在传输或存储中可能出错（由 0 变 1 或反之）

Parity Bit for Error Detection

Even parity code: 1 的数量是 even
Odd parity code: 1 的数量是 odd
只有当错的 bit 数量为 odd 才可以检测到

Cyclic Redundancy Check (CRC)

CRC 是能检测数据块中多个错误的检错方法：

发送端： 对数据块计算出一个校验和（checksum），附在数据后面一起发送；
接收端： 用同样的方法重新计算校验和并比对
结果为 0 说明未检出差错，非 0 说明出错。

Example

Given

Data: $10110010$
Generator code: $1010$
Denote Data by $D$ and Generator code by $G$

Send

在 data 后添加 $(n - 1) = 3$ 个 $0$ （n 是 Generator code 的长度）
$D^{'} = 1011 0010 000$

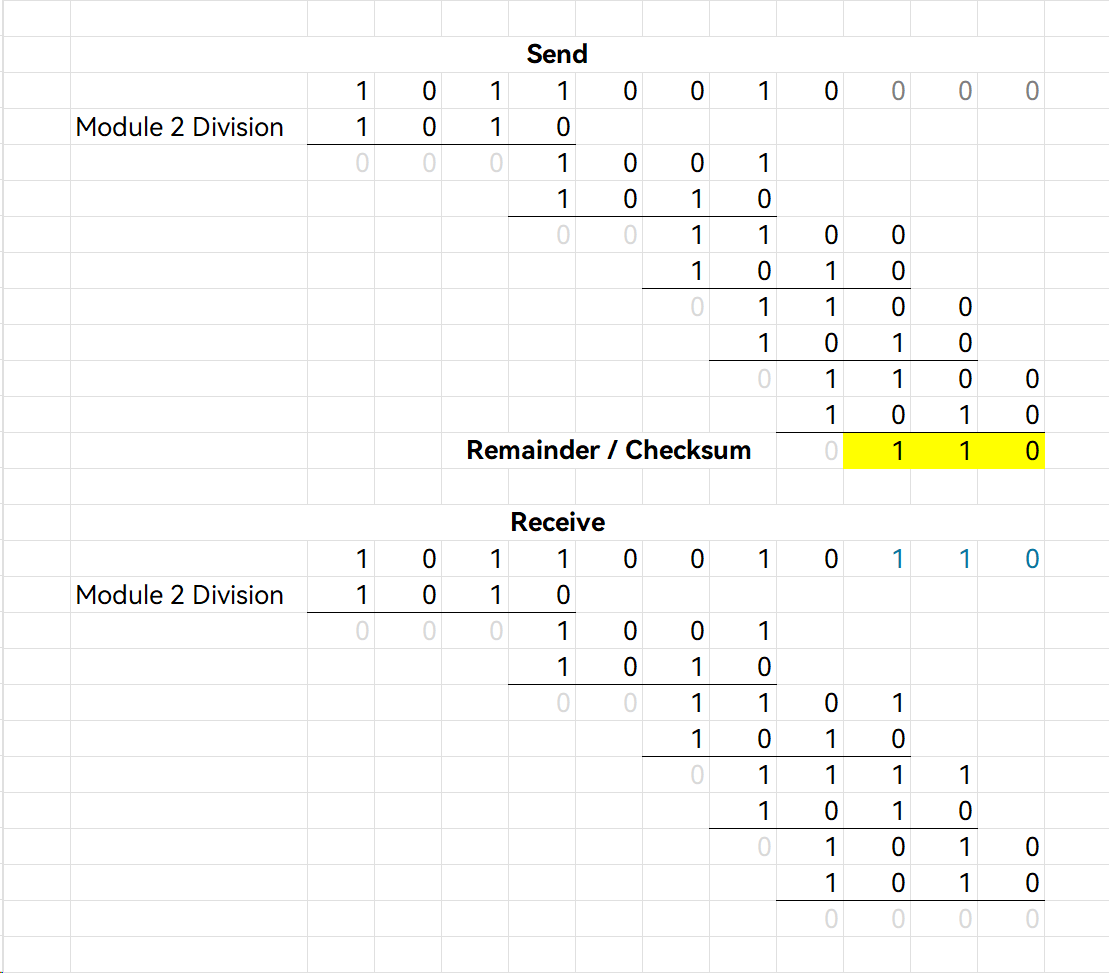

Modulo-2 Division: $\frac{D^{'}}{G} = 110$
Append the remainder / checksum to $D$
The transmitted CRC is $10110010110$

Receive
Divide received data by generator code

Correct: Remainder = 0
Error: Remainder is non-zero
